BATTERY
Let me introduce the batteries made for camping cars.
BTS-1290B
LiFePO4 BATTERY
12V 900Ah
Battery Characteristics
-
Battery Capacity
11,520Wh -
Continuation 300A
Top 600A -
Auto Relay
Reset Safety -
-25˚C ~ 60˚C
Wide Operating Temperature Range -
A/S
2years
Application Example
Battery Specification
| Pack Config. | 4S 3P |
|---|---|
| Capacity | 900A, 11520Wh |
| Nominal Voltage | 12.8V (3.2V/Cell) |
| Discharge Cut-off Voltage | 11.4V (2.5V/Cell) |
| Charging Voltage | 14.6V (3.65V/Cell) |
| Standard Charge | Constant current to 14.6V, then constant voltage to 0.01C |
| Standard Discharge | Constant current up to 10V |
| Nominal Charge Current | 180A |
| Maximum Continuous Charge/Discharge Current | 300A (BMS) |
| Operation Temperature | Charge : 0~55℃ |
| Discharge : -20~60℃ | |
| Storage Temperature | Less than 12 months : -20~25℃ |
| Less than 3 months : -20~45℃ | |
| Less than 1 month : -20~60℃ | |
| Size | 750 X 240 X 265(300)mm |
| Weight | 84kg |
High Performance BMS
-
Overcharge Protection
-
overdischarge Protection
-
Overcurrent Protection
-
Overtemperature Protection
-
Cell Balancing Function
-
Short Circuit Protection
Battery Characteristics Graph
-

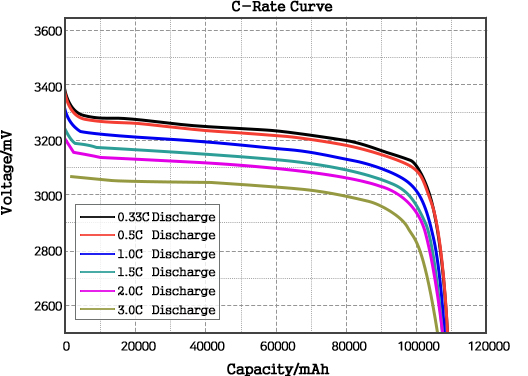

C-Rate Curve
C-Rate
-

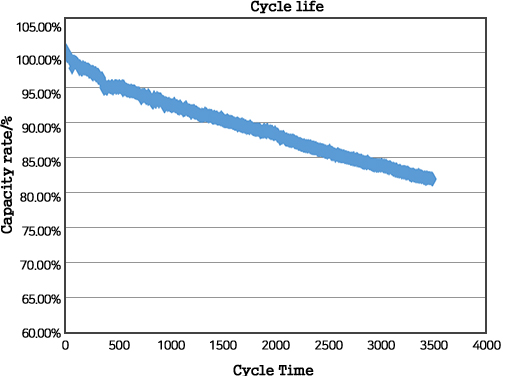

Cycle life
Cycle life
-

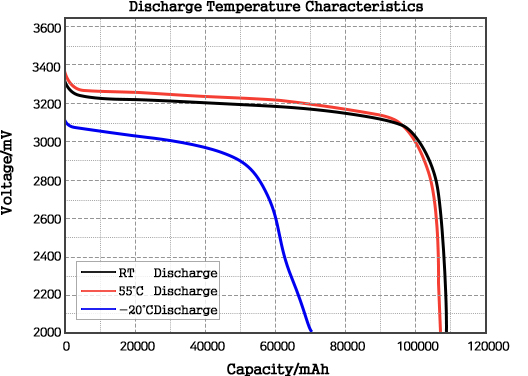

Discharge Temperature Characteristics
Discharge Temperature
-

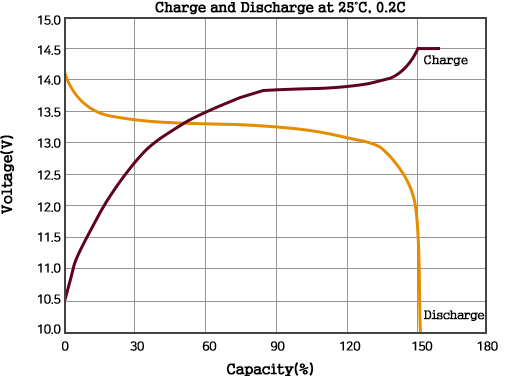

Charge and Discharge at 25˚C, 0.2C
Charge and Discharge
※ C-Rate means that a fully charged 1Ah battery is discharged to 1A for 1 hour.

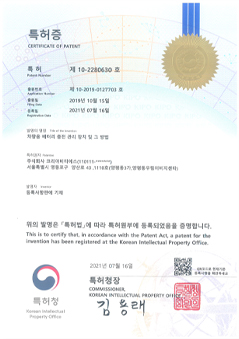

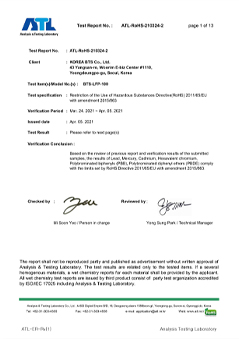

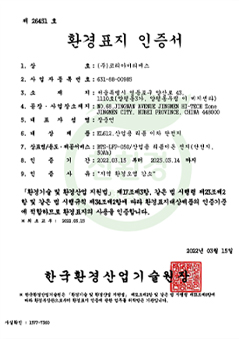

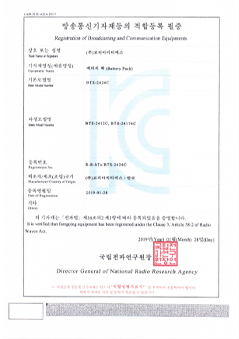

Patents & Certification
